AP-850 Cognitive Radio

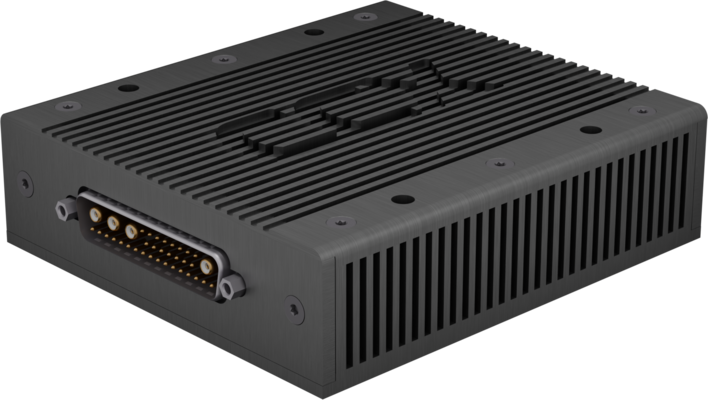

SDR

The AP-850 is a modern Cognitive Radio facilitating advanced AI-powered Radio Resource Management (AI-RRM) to support operations in an increasingly complex and competitive electromagnetic spectrum (EMS) environment. As an intelligent, software-defined radio system, the AP-850 continuously monitors its radio environment and adapts to dynamic spectrum conditions in real-time.

The AP-850 features a powerful 1024-core GPU capable of 157 TOPS and 16 GB of RAM (LPDDR5). This cognitive radio integrates CCX Technologies’ EC-100 and EC-101 Wideband Software defined radios for demanding connectivity and security operations.

Applications Interfaces Specifications

Applications

Dynamic Spectrum Access

The AP-850 facilitates intelligent spectrum monitoring to assess spectrum usage and identify holes between primary users. Other users can occupy these holes with their own transmissions for improved spectrum efficiency. With the help of AI/ML, these optimizations in spectrum usage can be made autonomously in real-time for instant allocation of unused resources.

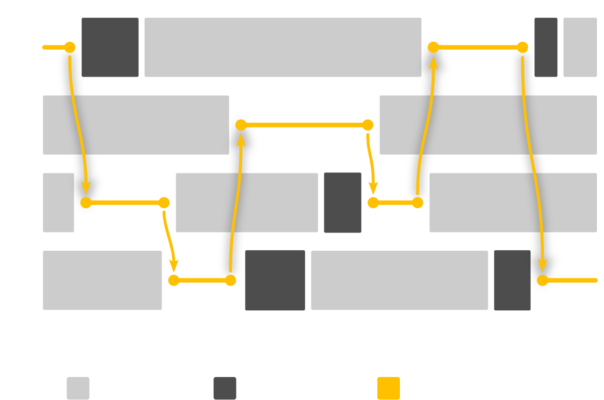

frequency hopping diagram

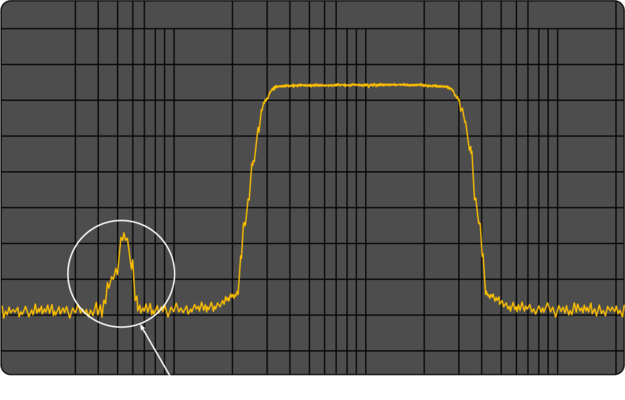

Spectrum Analyzer anomaly

Anomaly Detection

The AP-850 hosts powerful AI/ML tools which can observe EMS activity and recognize usage patterns in relation to time, date, location, and more. EMS traffic can be intelligently monitored and alerts can be generated when deviations or anomalies are detected. This cognitive radio supports autonomous responses and remediation to these alerts, including Human-in-the-Loop, Human-on-the-Loop, or Human-out-of-the-Loop approaches.

Signal Identification

The AP-850 Cognitive Radio supports intelligent EMS Signal Identification for detecting and cataloguing transmissions. AI/ML applications running on the AP-850 can perform automatic modulation classification to determine the modulation type of a signal; Demodulation of the signal can then be performed. These applications can also classify the signal’s type (WiFi, 5G, bluetooth, etc.). The transmitter of a signal can also be determined through RF fingerprinting.

Alert from UAV appraoching building

Interfaces

QTY Interface Standards
1 Ethernet 1000/100/10BASE-T (IEEE 802.3ab/u/i)
2 Radio Disable Discrete Inputs ARINC-628
4 Bidirectional Discretes ARINC-628
1 Power 12V and 28V DC

Specifications

Dimensions 5.18"L x 4.64"W x 1.40"H
Weight 2.4lb
Mounting Provisions 4 mounting holes for #8 bolts or screws; flange mount.
Option to install in 2 or 4 MCU form factor with an IK-350
Connectors MIL-DTL-24308G 36W4 Coax Male D-sub
Operating Voltage 28VDC or 12VDC
Typical Power Consumption 15W
Maximum Power Consumption 25W
GPU Performance 157 TOPS
Ethernet 10/100/1000/2500 BASE-T IEEE 802.3 Compliant Ethernet Ports with:
ACS, Automatic MDI/MDIX crossover, Automatic polarity correction, and IEEE 802.3u compliant auto negotiation
Discrete GPIO ARINC-628 GND/Open and High/Low Sensing Discrete Inputs/Outputs
GPU 1024 Cores, 32 Tensor Cores
Memory 16GB 128-bit RAM (LPDDR5-102.4GB/s)
Environmental Qualifications RTCA DO-160G
